Linear Guideways - PG Series

Shopping cart is empty.

Quote/Order now

Item	Specifications
Resolution (µm)	5,10,50,100,500,1000-
Accuracy (µm)	?80+15xL), L:Strip length (m)
Max speed (m/min)	80 (for 5 µm resolution)
Power Supply (V)	5,24?0%
Power Consumption	2~3 Watt
Output Signals (Pulse)	Phase difference 90°±10%
Working Temperature (°C)	Magnetic Strip: 0~50 Sensor: 0~70 Translator: 0~50
Storage Temperature (°C)	-5~50
Max. Rail Length	4m (Max. 32m for Butt-joint Rail)
Recommended Magnetic Strip Length	Stroke of Rail+25mm Each Side
Expansion Coefficient of Strip	16x10-6(mm/°C)
Protection Class	Magnetic Strip: IP66 Sensor: IP66 Translator: IP43

Downloads

• - Linear Guideway Catalog (PDF)

Specs

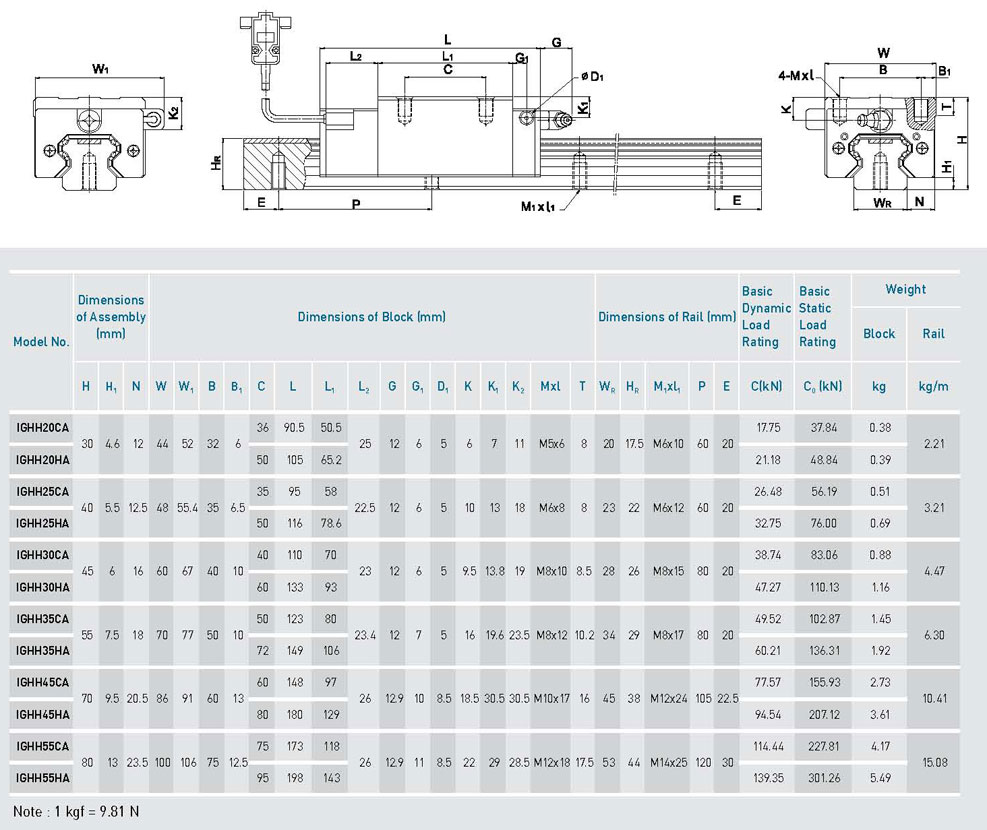

• - IGHH-CA/HA

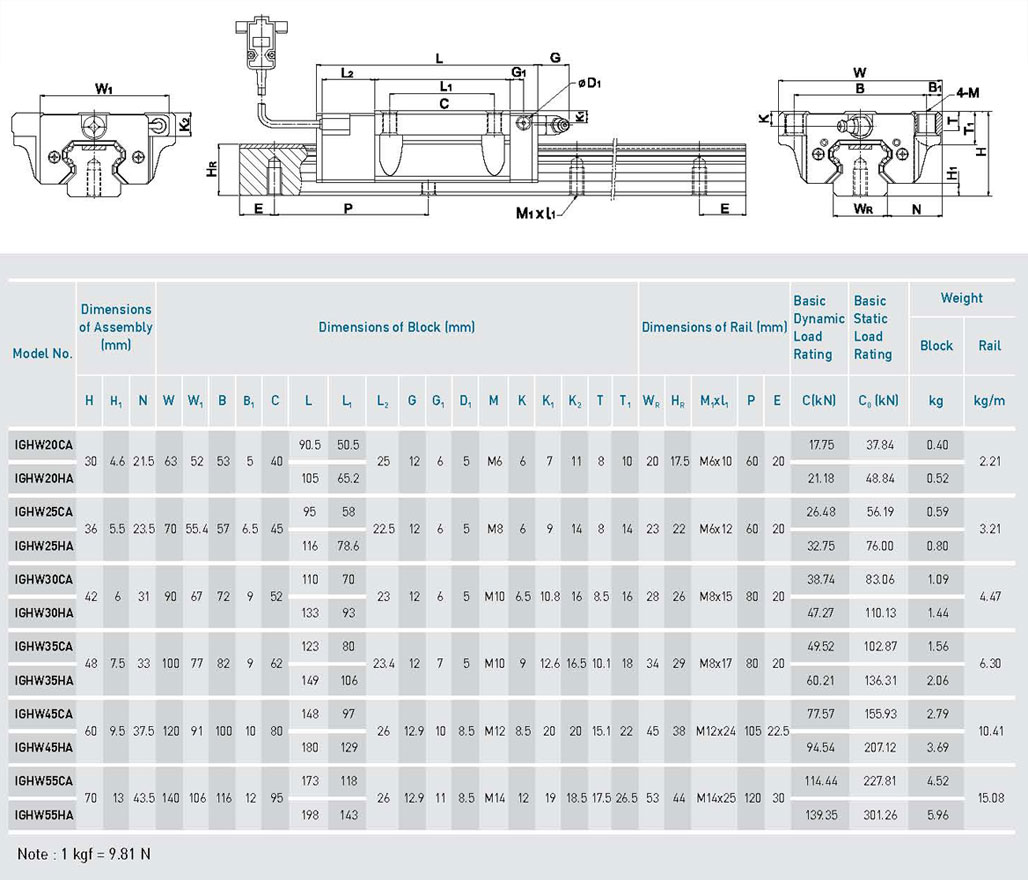

• - IGHW-CA/HA

More Information

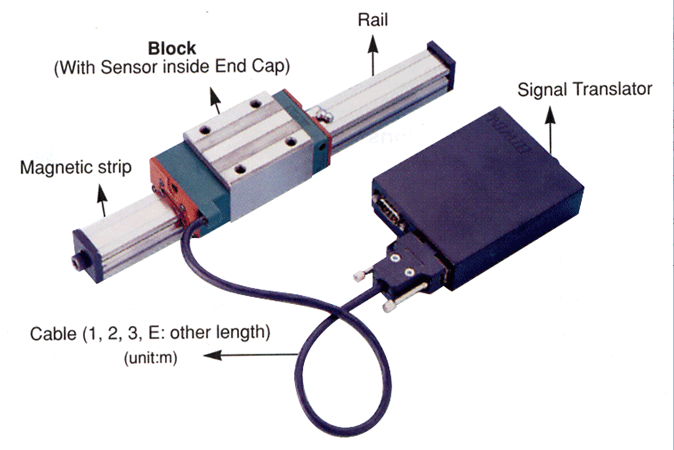

• - Diagram

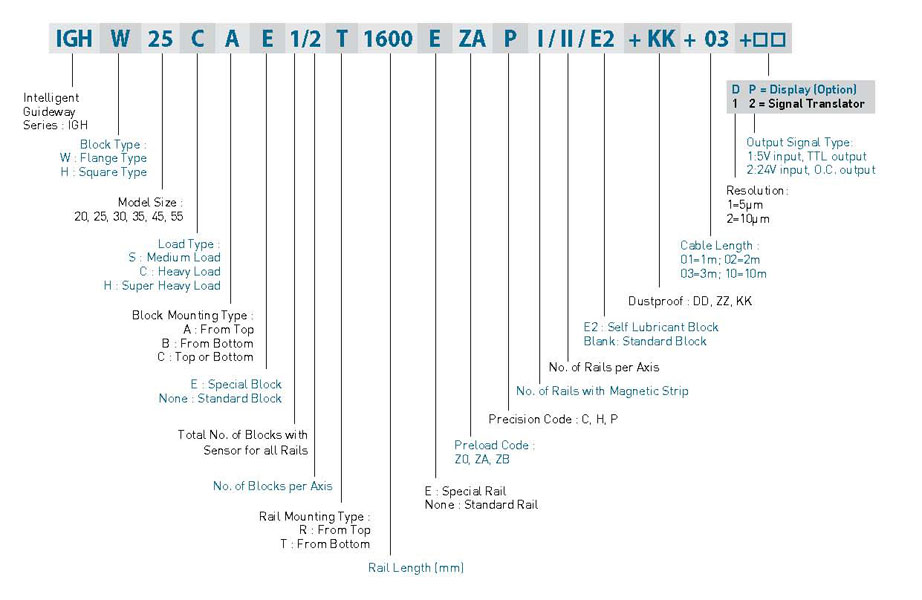

• - Model# Guide

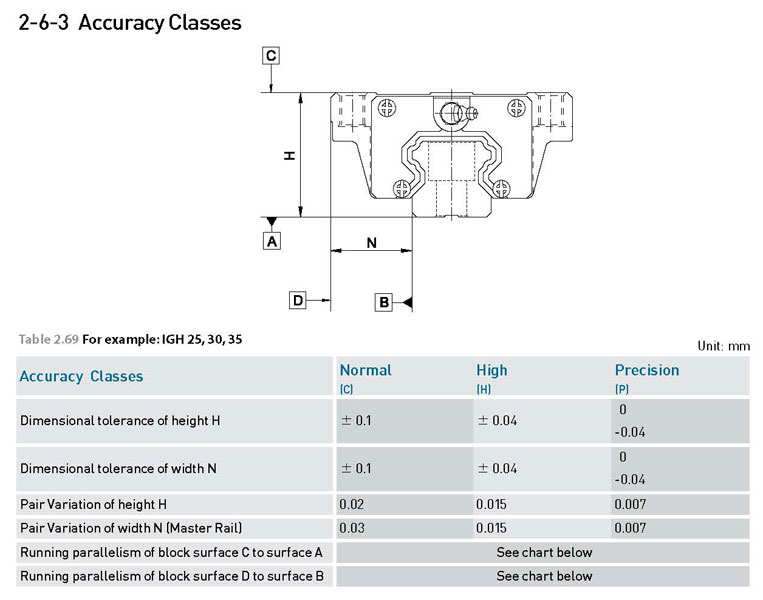

• - Accuracy
  (running parallelism)

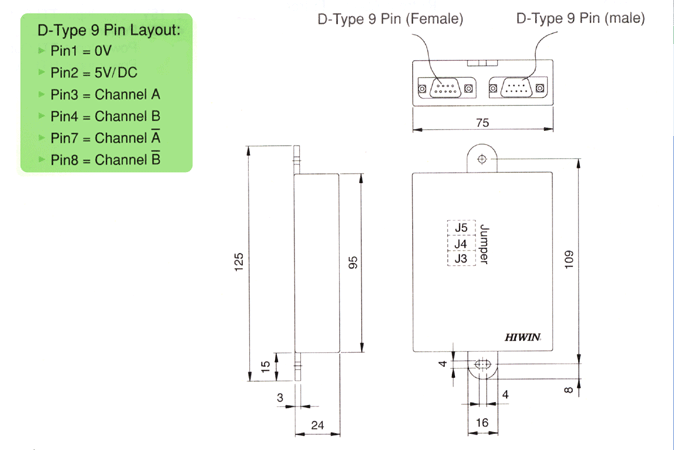

• - Signal Translator

Applications

• - Saves installation space by integrating the Linear Guideway with magnetic encoder.
• - Holds high rigidity and high accuracy concurrently from Linear Guideway and magnetic encoder.
• - Hiding type of sensor and magnetic strip without damage from external material.
• - Non-contact position measurement sensor can achieve long life performance.
• - Long distance measurement is possible (Magnetic Strip up to 32 m).
• - Works reliably in harsh conditions such as moisture, oil, grease, or dirt, and event in a vibration or high temperature environment.
• - High resolution.
• - Easy to install.
