Linear Guideways - MG Series

Shopping cart is empty.

Quote/Order now

Type	Shape	Height(mm)	Rail Length(mm)
Narrow MGN		8 - 16	40 - 1200
Wide MGW		9 - 16	50 - 1000

Downloads

• - Linear Guideway Catalog (PDF)

Specs

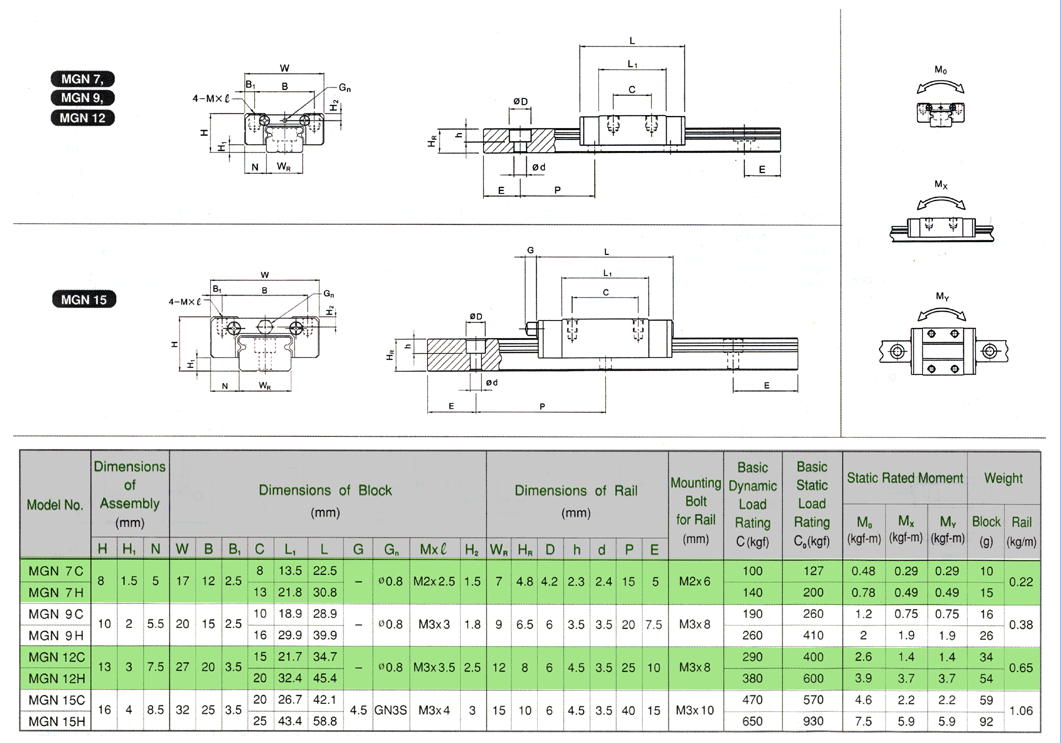

• - MGN-C/MGN-H

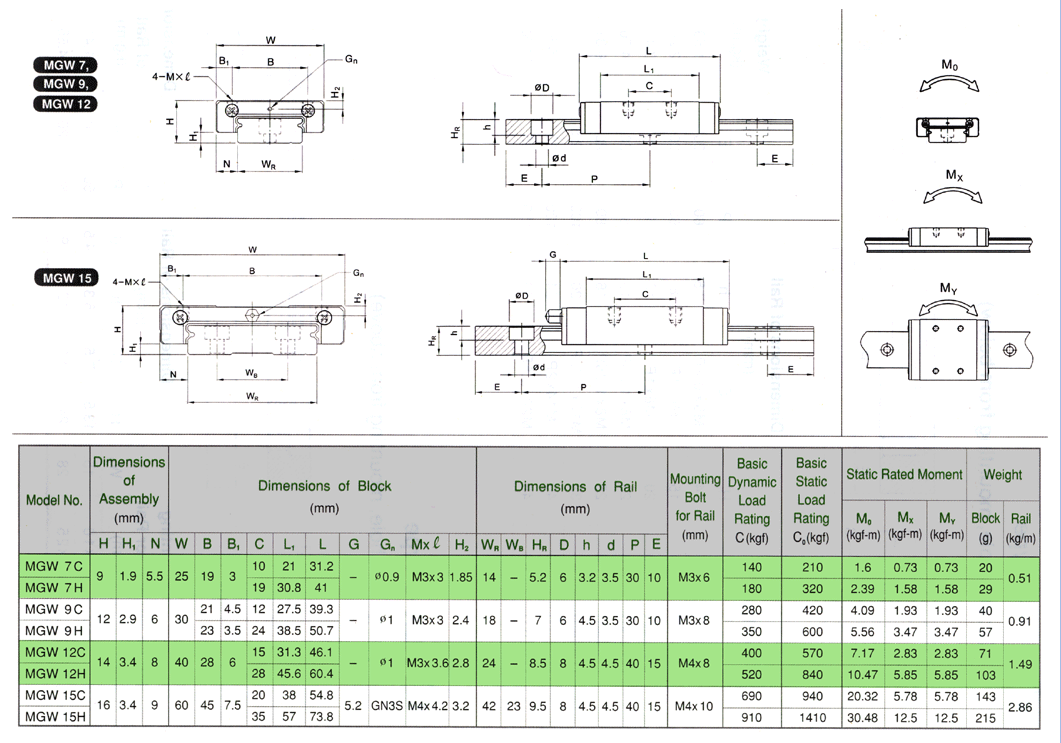

• - MGW-C/MGW-H

Applications

• - Miniature Device
• - Medical Equipment
• - IC Manufacturing
• - Wood Cutting
• - X-Y Table

More Information

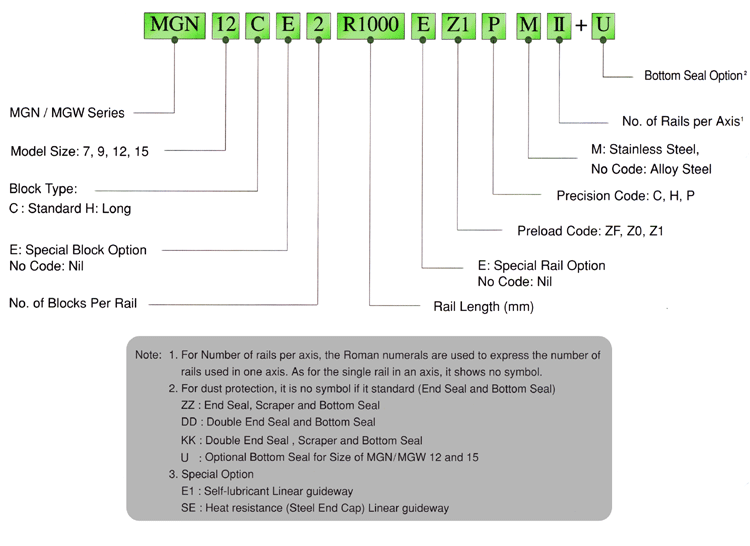

• - Model# Guide
  (non-interchangable)

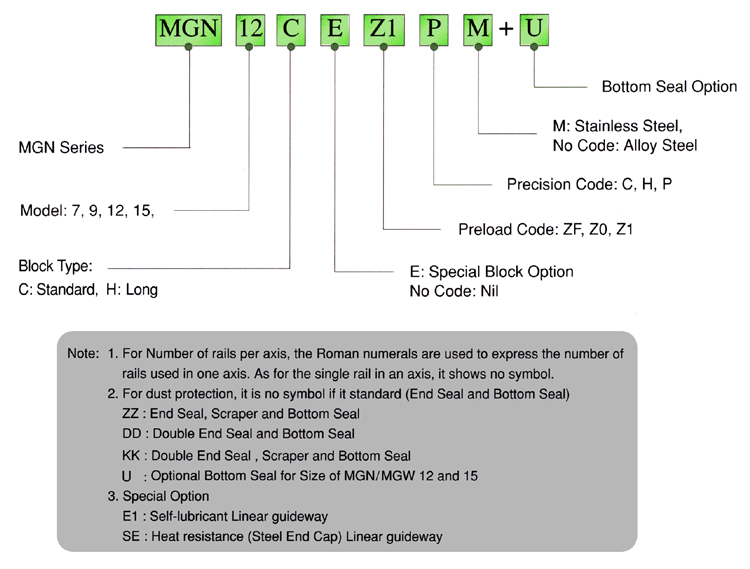

• - Model# Guide
  (interchangable block)

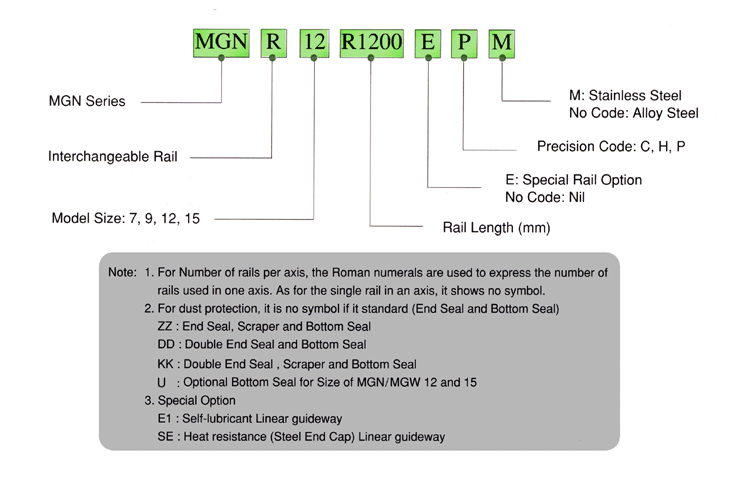

• - Model# Guide
  (interchangable rail)

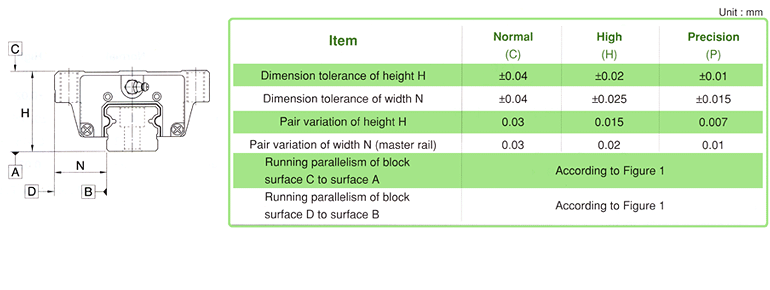

• - Accuracy
  (non-interchangable)

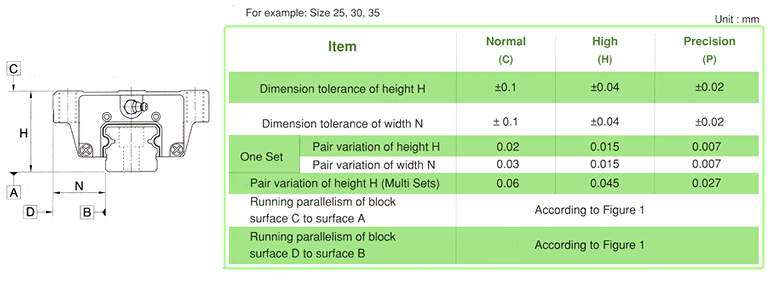

• - Accuracy
  (interchangable)

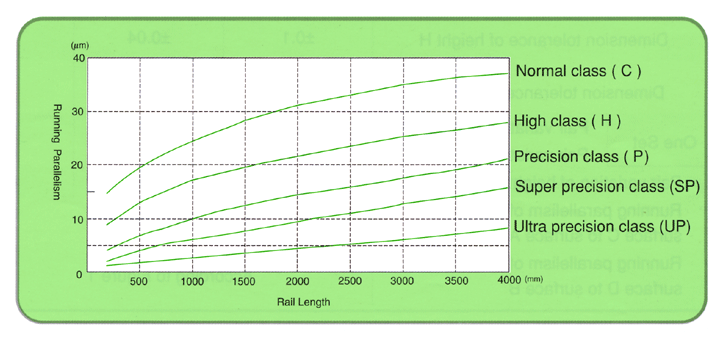

• - Accuracy
  (running paralelism)

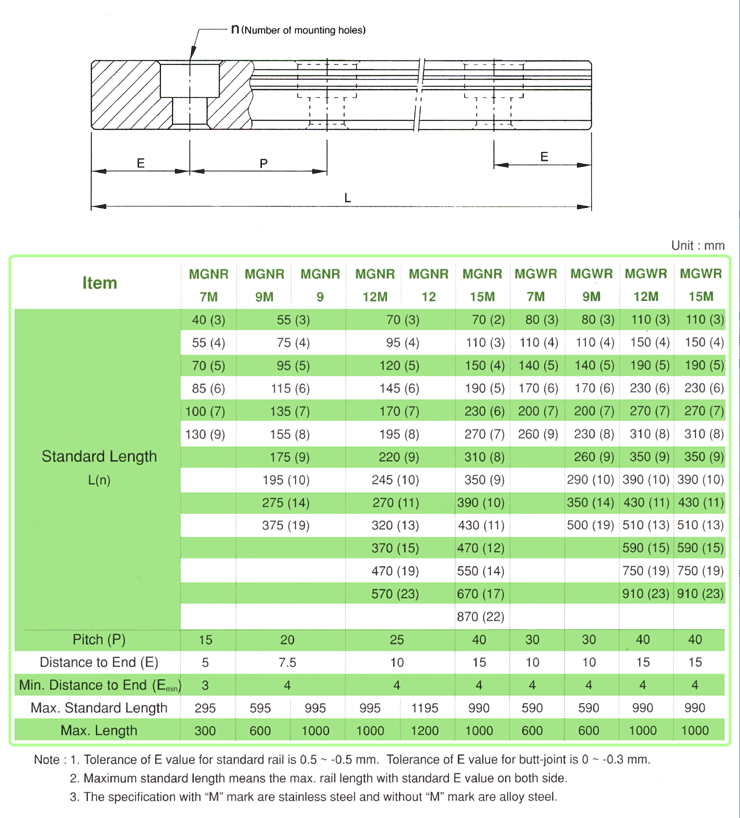

• - Length (standard/max)
