Linear Guideways - E2 Option

Item	Standard Block	E2(Self-Lubricating) Block
Lubricant Device	$XXX	-
Design & Installation of Lubricant Device	$XXX	-
Cost of Oil Purchase	0.3cc / hr x 8hrs / day x 280 days / year x 5 year = 3360cc x cost / cc = $XXX	10cc (5 years 10000km) x cost / cc = $XX
Cost of Refilling	3~5hrs / time x 3~5 times / year x 5 year x cost / time = $XXX	-
Waste Oil Disposal	3~5 times / year x 5 year x cost / time = $XXX	-

Downloads

More Information

Applications

- Machine Tools
- Manufacturing Machines: Plastic injection, printing, paper making, textiles, food processing, wood working, etc.
- Electronic Machines: Semiconductor equipment, robots, X-Y table, measuring and inspecting equipment.
- Others: Medical equipment, transporting device, housing equipment.

Features

- Clean & Environmentally Friendly: Optimized oil usage prevents leaking, making it the ideal solution for clean working environments.
- Long Life & Low Maintenance: Self-lubricating block is maintenance free in most applications.
- No Installation Limitations: The linear guideway can be lubricated by the E2 self-lubricating module irrespective of the mounting directions.

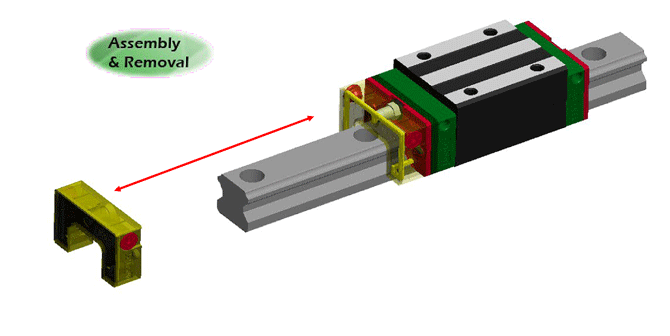

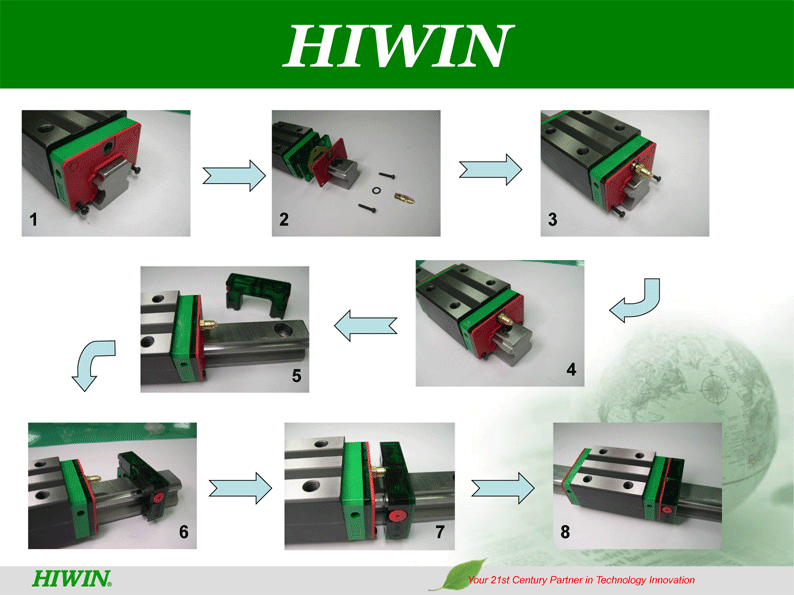

- Easy Assembly & Removal: The oil cartridge can be added or removed from the block even when the guideway is installed on the machine.

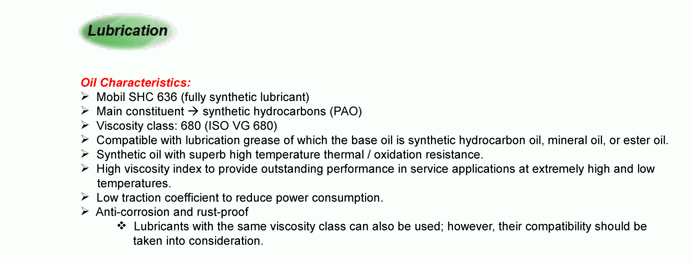

- Oil Selection: The replaceable oil cartridge can be refilled with any approved lubrication oil depending on the requirement.
- Applications for Special Environments: Sealing grease into the block leads to better lubrication results especially in dusty, dirty, or wet environments.
